Year
|
Chassis
# location
|
Engine
# location
|
source
|
1901
|
|
|
|

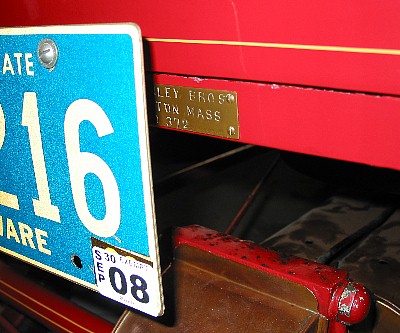

1902
|
rear
of body, outside
|
|
my observation at the Marshall
Collection |
1903
|
|
|
|
1904
|
|
|
|
1905
|

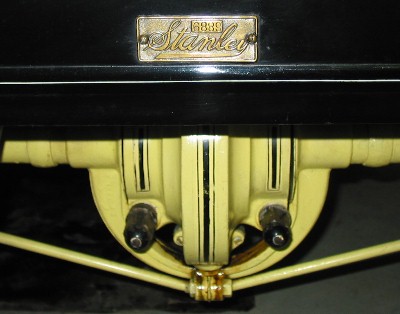

rear of
body, outside |
|
my observation at the Marshall
Collection |

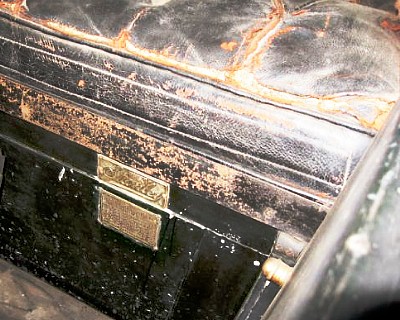

1906
|

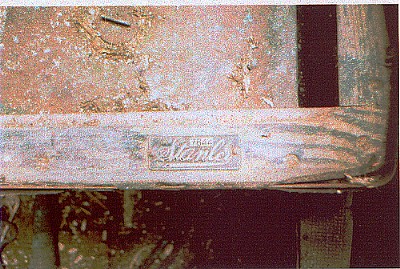

vertical panel below front seat
|
|
image courtesy of Peter Turvey,
taken from car #2258
|
1907
|
|
|
|
1908
|

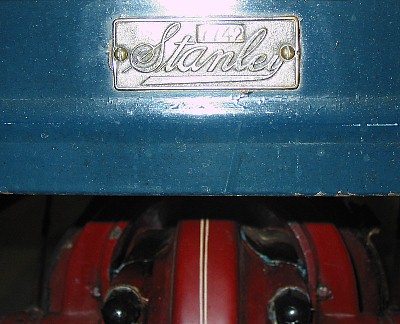

rear of
body, outside
|
|
my observation at the Marshall
Collection |
1909
|
|
|
|
1910
|
rear of
body, outside
|
|
my observation at the Marshall
Collection |
1911
|
|
|
|
1912
|
rear of
body, outside
|
|
my observation at the Marshall
Collection |
1913
|
rear of
body, outside
|
|
my observation at the Marshall
Collection |
1914
|
rear of
body, outside
front passenger seat frame, near corner
|
|
my observation at the Marshall
Collection
courtesy of Peter Turvey
|
1915
|
rear of
body, outside
|
|
my observation at the Marshall
Collection |

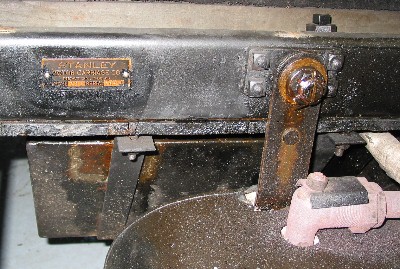

1916
|
rear face
of engine mount crossmember
|
|
my observation at the Marshall
Collection |
1917
|
|
|
|
1918
|
rear face
of engine mount crossmember |
|
Steam Gazette discussion
|

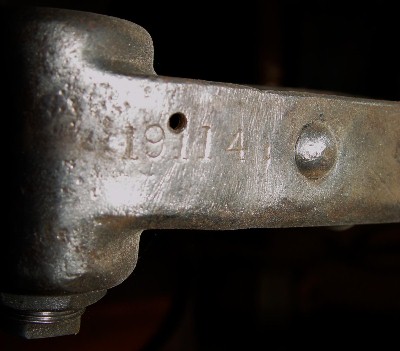

1919
|
probably
frame inside
burner flap, just forward of the steering arm
Also seen on left front frame horn, as:
|
|
|
1920
|
|
|
|
1921
|
frame inside
burner flap, just forward of the steering arm
OR
stamped on the drivers side outside front frame member
just behind the riveted piece for the front spring perch
Also seen stamped in right rear frame.
|
|
Steam Gazette discussion
|

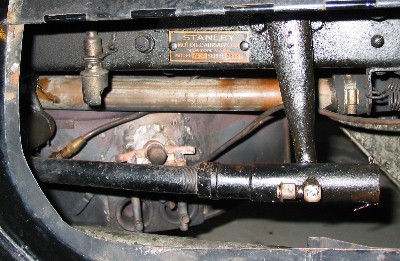

1922
|
frame inside
burner flap, just forward of the steering arm
OR
stamped on the drivers side outside front frame member
just behind the riveted piece for the front spring perch
|
|
my observation at the Marshall
Collection
Steam Gazette discussion
|
1923
|
|
|
|
1924
|
top of left frame rail, car reportedly originally shipped to Canada, no serial # plate in normal position on side of frame rail
|
|
Don Hoke photo
|
1925
|
|
|
|
1926
|
|
|
|
